5000 gallon CARBON STEEL PRESSURE TANK

Stock no. E-4340 (2) 5000 gallon CARBON STEEL PRESSURE TANK Mc Gill Pollution Control Systems serial no. 1915-1, 1991 National Board no. 1050 10 ft. diameter x 102 inch w/dished top and bottom 10 ft. 6 inch o/a wide to ship Rated for 25/15 ext. psi @ 300 deg. F.,MDMT -20 deg. F 10 inch […]

4000 gallon STAINLESS STEEL TANK with INTERNAL COILS

Stock no. A-5267 4000 gallon STAINLESS STEEL TANK with INTERNAL COILS Has 2 inch diameter coils the full length of the tank into the bottom cone Tank is approx. 108 inch diameter x 101 inch with a cone bottom and flat top Has fiberglass insulation with an outer shell Outside diameter is 112 inch and […]

4500 gallon STAINLESS STEEL TANK with INTERNAL COILS

Stock no. A-5266 4500 gallon STAINLESS STEEL TANK with INTERNAL COILS Has 2 inch diameter coils the full length of the tank into the bottom cone Tank is approx. 115 inch diameter x 101 inch with a cone bottom and flat top Has fiberglass insulation with an outer shell Outside diameter is 10 ft. and […]

2642 gallon POLY TANK 10,000 LITERS

Stock no. A-5247 2642 gallon POLY TANK 10,000 LITERS Yading model BC-10000L, no. 021-59211100 88 inch diameter x 8 ft. straight side with dome top and flat bottom Approx. 2 ft. top center manway, flanged 2 inch side out and 6 x 6 inch side out Assorted top inlets. Currently mounted on wastewater skid, see […]

2000 gallon CONE BOTTOM POLY TANK

Stock no. A-5246 2000 gallon CONE BOTTOM POLY TANK 80 inch diameter x 90 inch straight side with 6 inch cone bottom Dome top with approx. 2 ft  top center manway (optional mixer available) Assorted top inlets, 3 inch flanged bottom center outlet, 2 inch side outlet 29 inch tall steel stand, 12 inch to […]

1800 gallon STAINLESS STEEL JACKETED TANK with MIXER

Stock no. E-4338 1800 gallon STAINLESS STEEL JACKETED TANK with MIXER Possible id plate under insulation. dimple jacketed 66 inch diameter x 10 ft. with dished bottom, flat top Insulated, 70 inch od x 156 inch o/a. 23.5 inch to bottom center out 1.5 inch bottom center outlet with ball valve., assorted top inlets Bottom jacket […]

2500 gallon STAINLESS STEEL JACKETED TANK

Stock no. E-4339 2500 gallon STAINLESS STEEL JACKETED TANK INSULATED Possible plate info under insulation, side jacketed 7 ft. diameter x 102 inch with 10 inch cone bottom and flat top 2 inch bottom center outlet with ball valve Assorted top inlets, 20 inch top manway, side fitting for thermal port Side jacket inlet and […]

2500 gallon STAINLESS STEEL TANK WATER STORAGE

Stock no. A-5241 2500 gallon STAINLESS STEEL TANK used for DRINKING WATER STORAGE 78 inch diameter x 10 ft. flat bottom and top 2 inch side outlet just bellow bottom edge and one 10 inches above ground 3/4 inch side outlet and inlet, (2) 2.5 inch top inlets, side manway Has steel bridge with 4 […]

4100 gallon CONE BOTTOM POLY TANK SNYDER

Stock no. A-5242 4100 gallon CONE BOTTOM POLY TANK with DOMED TOP Snyder model ASM TK4100 CB45VDT 90HD NAT 1.5 P/n 5180000N97401, wo 00274995 4100 gallon capacity, rated for 1.5 specific gravity 88 inch diameter x 141 inch straight side with 3 ft. 45 deg. cone 194 inch bottom outlet to top of tank High […]

4200 gallon 316 STAINLESS STEEL PRESSURE TANK 50 psi

Stock no. E-4334 4200 gallon 316 STAINLESS STEEL PRESSURE TANK 50 psi Cherry Burrell no. E-302-94, National Board no. 4317, year 1995 Modified by Hart Engineering in 2001 Rated for 50 psi @ 400 deg. F 8 ft. diameter x 10 ft. straight side with 2 ft. dished bottom and top 16 inch side manway, […]

3000 gallon POLY STORAGE TANK

Stock no. A-5174 3000 gallon POLY STORAGE TANK 8 ft. diameter x 107 inch overall height Flat bottom, domed top Top manway, 3 & 4 inch top fittings, 1.5 inch side out (2) 3 inch side out and (1) 3 inch side in Markings to 3,000 gallon. Last used for water to test filters. (1) available

3500 gallon STAINLESS STEEL JACKETED TANK

Stock no. E-4217 (2) 3500 gallon STAINLESS STEEL JACKETED TANK Has 1/3 bottom panel coil jacket 92″ diameter x 10′ with cone bottom and flat top w/hinged lid 2″ bottom center outlet, (5) 2″ top inlets, (3) 1.5″ side outlets, 2″ thermal well Currently with older style 25 Hp drive, but we can update with […]

10000 gallon PFAUDLER GLASS LINED TANK

Stock no. A-0290 10,000 gallon GLASS LINED TANK Pfaudler Chemstor order 43677 10 ft. diameter x 15 ft. with 24″ dished ends 24″ top manway and side manway, 3″, (3)2″, & 4″ fittings Needs some patches on glass. Selling “AS IS” (1) available

2500 gallon POLY STORAGE TANK

Stock no. A-5105 2500 gallon POLY STORAGE TANK Serial no. 110519542, possibly Snyder model TK 2500VNT X 96 Approx. 8′ diameter x  75″ straight side with domed top, flat bottom 90″ o/a height Has top manway, 2″ side outlet and several 1″ top inlets Graduation side markings, 2000 approx. 3/4 the way up 2500/3000 marking near top […]

2000 gallon FIBERGLASS TANK DISH BOTTOM HINGED LID

Stock no. A-5090 2,000 gallon FIBERGLASS TANK DISH BOTTOM HINGED LID AK Ind Co, no. 46563, year 1990 7′ diameter x 7′ w/dished bottom, hinged lid rated for 1.5 specific gravity, 150 deg F max 2″ bottom center outlet, lid has 4″ ti, (8) 2″ ti. Bottom outlet 12″ to floor Last use = 45% potassium […]

5000 gallon CARBON STEEL PRESSURE TANK

Stock no. E-4162 (2) 5000 gallon CARBON STEEL PRESSURE TANK Mfg. by Drummond Welding & Steel Works Ltd of Canada Rated for 14 psi @ 120 deg. F to -20 deg. F. ASME code vessel, built 1997 .25″ heads, .375″ shell thickness 8 ft. diameter x 12′ 6″ straight side with dish top & bottom […]

3000 Gallon DUAL COMPARTMENT STAINLESS STEEL FLAMMABLE STORAGE

Stock no. A-4910(2) 3000 Gallon DUAL COMPARTMENT STAINLESS STEEL SOLVENT TANK Stainless steel with concrete outer shell used for flammable liquid storage. Approx. 114″ wide x 154″ long x 114″ tall not including attachments and 2 support cradles.  Approx. 45,000 lbs each. Additional details to follow. (2) available

2850 gallon 304 STAINLESS STEEL CONE BOTTOM PRESSURE TANK

Stock no. E-4115 (2) 2850 gallon 304 STAINLESS STEEL CONE BOTTOM PRESSURE TANK RAS Process Equipment no. 04249501, year 2005, National Board 1587 Rated for Full Vacuum/50 psi @ 200 deg. F 80″ diameter x 8′ straight side + 66″ bottom cone & dished top 18″ side manway, 3″ bottom center outlet, 2″ top center […]

2000 GALLON FIBERGLASS TANK

Stock Number: A-4559 2,000 GALLON FIBERGLASS TANK 7 ft. diameter x 8 ft. with dished bottom, flat top 2 inch bottom center outlet, assorted top inlets (1) available

2000 GALLON FIBERGLASS TANK

Stock Number: A-4570 2,000 GALLON FIBERGLASS TANK Mfg. Formed Fiberglass 7 ft. x 7 ft. with flat bottom & open top (5) 2 inch side inlets and outlets Originally with water filtration system in service for 2 years Very clean! (1) available We have (2) more similar available

2000 GALLON FIBERGLASS TANK

Stock Number: A-1316 2,000 GALLON FIBERGLASS TANK Mfg. Owens Fiberglass 74 inch diameter x 9 ft. with flat bottom Open top 3 inch side outlet (1) available

2150 GALLON FIBERGLASS TANK

Stock Number: A-4577 (2) 2,150 GALLON FIBERGLASS TANK Mfg. Formed Fiberglass Co. 7 ft. dia. x 90 inch flat bottom, open top 2 inch side outlet (1) has (1) 6 inch side inlet & (1) has (2) 6 inch side inlets Last used for Hydrofluoric Acid Used for 2 years (2) available

2200 GALLON FIBERGLASS TANK

Stock Number: A-0704 2,200 GALLON FIBERGLASS TANK 7 ft. diameter x 90 inches with flat bottom Open top with overflow recess on top rim (1) available

2,500 GALLON FIBERGLASS TANK

Stock Number: A-3014 2,500 GALLON FIBERGLASS TANK 6 ft. x 12 ft. w/flat bottom and dished top 24 in. top manway, 3 in. side outlet 2 in. top center inlet, (2) 2 in. top inlets (1) available

2,500 GALLON FIBERGLASS TANK

Stock Number: A-1945 7 ft. diameter x 101 inch straight side 7 inch dished top and flat bottom Needs repair on bottom, can see light coming through Selling AS IS! (1) available

4400 GALLON FIBERGLASS TANK

Stock Number: A-1908 8 ft. diameter x 11 ft. Flat top & bottom 24 inch side and top manways 2 inch side outlet Has coils inside for heating or cooling Partially Insulated Needs work, selling “AS IS”, Reduced! (1) available

7000 GALLON FIBERGLASS TANK FLAT BOTTOM CLOSED TOP

Stock Number: A-2679 7,000 GALLON FIBERGLASS TANK FLAT BOTTOM CLOSED TOP Fiberglass tank, 7000 gallon for repair 12 ft. diameter x 8 ft. 6 inches. Flat bottom, dished top Top and side manways, 18 inch > 2.5 inch outlet 1.5 and 4 inch top inlets Bottom flange and outer wall have cracks!! Selling AS IS! […]

8,000 GALLON FIBERGLASS TANK

Stock Number: A-4277 8,000 GALLON FIBERGLASS TANK Mfg. Owens Corning Model 108MC, no. 6088-596 10 ft. diameter x 14 ft with closed top and flat bottom 22 inch side and top manways, 2 inch side outlet 2.5 inch top vent, 1 & (2) 2 inch top inlets. 3 inch diptube Has some stress cracks on […]

3000 GALLON LINED PRESSURE TANK

Stock Number: E-2245 3,000 GALLON LINED PRESSURE TANK Mfg. Modern Welding -Union Carbide no. 7345, 1971 Carbon steel with Plastite 3066 lining Tank rated for 40 psi @ 650 F, but limited to 200 F with lining 8 ft. diameter x 7.5 ft with dished top and bottom (1) available

3500 GALLON CARBON STEEL PRESSURE TANK LINED FILTER TANK

Stock Number: E-1883 3,500 GALLON CARBON STEEL PRESSURE TANK LINED FILTER TANK Mfg. Allied Steel Products rated for 125 psi @ 140 deg. F, not for vacuum 93 inch diameter x 104 inch with 18 inch dished top & bottom 7 inch id bottom center outlet, side sight glass assorted top ans side in and […]

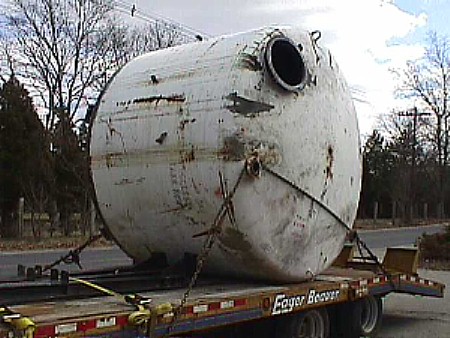

3200 GALLON GLASS LINED STORAGE TANK

Stock Number: A-1323 (4) 3,200 GALLON GLASS LINED STORAGE TANK Mfg. Pfaudler 9 ft. diameter x 66 inch with 12 inch dished top & bottom 3 inch bottom center outlet, 17 inch top manway 1.5 inch top inlet and (2) 3 inch top inlets (6) sockets for pipe legs. From a brewery Glass has some […]

6000 GALLON CARBON STEEL TANK

6,000 GALLON CARBON STEEL TANK Stock Number: A-4684 (2) 6000 gallon carbon steel tank 102 inch diameter x 14 ft. w/flat bottom & top Top mounted bridge for a mixer 1/4 inch thick! Mfg. Industrial Air Inc. built in 1994 (2) available
