4.5 gallon POLISHED STAINLESS STEEL PRESSURE TANK FV 50 psi

Stock no. E-4530

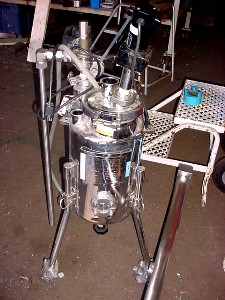

4.5 gallon POLISHED STAINLESS STEEL PRESSURE TANK
Apache Stainless Equipment serial no. 27962-A, year 2002
National Board no. 872, rated for FV/50 psi @ 266 deg. F
10 inch diameter x 13 inch straight side with dished bottom and top
1 inch bottom center outlet with pop up style valve
6 inch tri-clamp top port with (2) 2 inch tri-clamp fittings
There is a dc powered mixer attached to one of the fittings
(4) 1.5 inch tri-clamp top inlets, one with a pressure relief valve
(3) side ports approximately 1.5 inch with blanked fittings
(3) internal baffles. High polished stainless steel, possibly 316 grade.
On 3 legs with a 19 inch footprint, 33 inch to top port, 47 inch to top of mixer.

(1) available
