Category Archives: Jacketed Tanks Under 500 Gallons

Stock no. E-4504 3 gallon STAINLESS STEEL JACKETED TANK with MIXER 8.75 inch inside diameter x 12 inch deep, flat bottom, clamped top (2) motor option, both 1/8 Hp, 90 v dc with speed controls Motors have different size pulleys for additional speed options (6) 1/4 inch top inlets with (3) dip tubes. 1/4 inch […]

Stock no. E-4305 200 gallon MUELLER  TANK with INTERNAL PLATE COIL Model RHP200, no. 105738 .23 cu. ft. coil volume, 113 psi max, originally R-12 medium 46 inch inside diameter x 33  > 34.5 inch slant bottom 1.5 inch tri-clamp side outlet on low side, 1.5 inch threaded side outlet opposite side 31 inch diameter […]

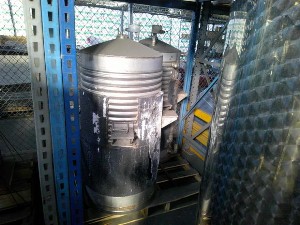

Stock no. E-4233 (2) 100 gallon STAINLESS STEEL JACKETED TANK 24 inch diameter x 48 inch with cone bottom, open top 1 inch bottom center outlet and side outlet, 2 inch side inlet 3/4 inch thermal well. 1/2 side jacket with 1 inch jacket inlet and outlet Has gussets that we can add legs to. […]

Stock no. E-4188 2.5 gallon STAINLESS STEEL STEAM JACKETED MANTLE TANK ACME IND.EQUIP./THE HODGE GROUP, serial no. R-842,1986 Jacket rated for 100 psi @ 400 deg F max 12″ diameter x 8″ dish bottom, 16″ x 11.5″ tall o/a 1/2″ jacket in and out. No bottom outlet Has removable insulation wrap (2) available

Stock no. E-4174 350 gallon 304 STAINLESS STEEL JACKETED TANK 41.5 inch inside diameter x 60 inch with dished bottom, open top Has 2 sets of brackets for baffles, approx. 2 inch bottom center outlet Side probe inlet and 1 inch side outlet Has carbon steel jacket, side and bottom inlets and outlets (1) available

Stock no. E-4013 60 gallon STAINLESS STEEL JACKETED TANK with MIXER Kol Flo model no. cm1b 60, s/n 14406.63 26 inch diameter x 29 inch flat bottom stainless steel tank with lid 1 inch side inlet, 1 inch bottom outlet jacketed tank, has refrigeration coils Motor approx. 1/2 Hp side mount agitator Mounted on platform […]

Stock no. E-4070 210 gallon STAINLESS STEEL BOTTOM JACKETED CLOSED TANK Tank is jacketed on the bottom only Approx. 44 diameter  x 30 inch with dished bottom and top 2 inch bottom center outlet top inlets = 8 inch, 10 inch, 3 inch, (4)1.5 inch, and a 12 inch top center (1) available

Stock no. E-3996 45 gallon HORIZONTAL JACKETED TANK 18″ x 35″ x 16″ , no lid curved bottom stainless steel horizontal (3) 2″ bottom outlet, (4) 3/4″ jkt i/o has six 1 1/2″ x 3/4″ oval bottom outlets along bottom

Stock Number: E-2037 150 GALLON STAINLESS STEEL JACKETED TANK Has bolted top and we can add legs 30 inch diameter x 4 ft with 6 inch bottom dish 304 stainless steel w/carbon steel side jacket with 1 inch inlet and outlet 1.5 inch bottom center outlet, assorted inlets in top. (1) available

Stock Number: E-3805 2 .5 GALLON STAINLESS STEEL JACKETED TANK Mfg. Artisan Industries 6 inch diameter x 22 inch with dished bottom Clamped flat top. No bottom outlet! Rated for FV/100 psi @ 325 deg. F Shell and 100 psi jacket Marked 10L It is imploded due to over pressurizing the jacket PRICE REDUCED. Will […]

Stock Number: E-2495 Mfg. PFAUDLER INC. Serial no. E93685, 1956, N.B.9555 32 in. x 31 in. w/dished bottom, open top Jkt = 100 psi @ 300 F No. 53 glass, insulated 2 in. bottom center outlet. Has spot in glass (1) available

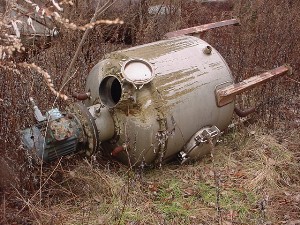

Stock Number: E-3125 250 GALLON JACKETED TANK with optional homogenizer mixer 44 inch diameter x 37 inch with dished bottom and top 4 inch bottom center outlet, 16 inch side manway 304 STAINLESS STEEL Side jacketed, low pressure, 2.5 inch in and out fittings 12 inch top center mixer mount flange. 16 inch side manway […]

Stock No. E-3216 450 GALLON STAINLESS STEEL JACKETED TANK 42 inch x 75 inch with dished bottom, flat top Stainless steel with carbon steel jacket 2.5 inch bottom center outlet Side and bottom jacket in/out May have a plate under insulation Has gussets for mounting, but we can add legs if needed (1) available
