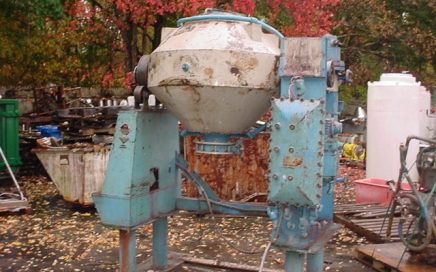

Stock no. D-1107 10 cu. ft. JACKETED STAINLESS STEEL DOUBLE CONE DRYER BLENDER Patterson Kelley serial no. 165320 Rated for 125 lbs. per cubic foot. Stainless steel w/ carbon steel jacket Rated for full vacuum internal and 30 psi @ 350 deg. F max. jacket 42 inch diameter x 10 inch with 15 inch bottom […]
Stock no. B-4324 2 cu. ft. KELLY DUPLEX PLOW BLENDER CARBON STEEL Made by The Duplex Mill and Manufacturing Co. Model 191, serial no. 62076 1 Hp, 3 phase motor to 43.35 to 1 ratio gear box, 1700 rpm in, 39 rpm out Control box, Start, Stop, and Reset Has (2) plow type rotating blades. […]
Stock no. B-4282 4-16 qt. STAINLESS STEEL V BLENDER BIN BLENDER Labeled 251-EB, 2.2 Eugene Blender, FDBLD0006 We have added 2 options that can be used with this unit. Includes a 16 quart and 4 quart Twin Shell V blender attachments 2.2 cu. ft. total volume bin, 15 inch x 13 inch x 19.5 inch […]

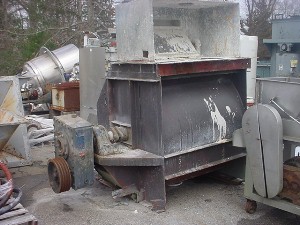

Stock no. B-4215 42 cu. ft. STAINLESS STEEL PLOW BLENDER Stainless steel internals. 53 inch wide x 40 inch x 53 inch deep inside Approximate 10 Hp motor to pulley driven Falk gear reducer Approximate 3 inch bottom center outlet, 24 x 14 inch hinged lid 2 inch and 3 inch top inlets. 48 x […]
Stock No. D-1104 20 CU. FT. STAINLESS STEEL TWIN SHELL VACUUM DRYER V BLENDER Mfg. GEMCO/ General Machine Co. Model V-Shape Formulator rated for 65 lbs./ cu. ft. 304 STAINLESS STEEL shell Jacket is carbon steel with an outer stainless steel shell Expert Industries no. 4844, National Board no. 395, year 1982 Jacket rated for […]
Stock no. B-4136 45 cu. ft. SANITARY STAINLESS STEEL DOUBLE CONE BLENDER Paul O Abbe, compares to model RCB-29 45 cu. ft. full capacity, 29 cu. ft. working capacity 54 inch inside diameter x 16 inch with 24 inch cones 14 inch inside diameter top inlet with lid 8 inch bottom outlet with valve 5 […]
Stock no. D-1103 150 psi REGENERATIVE DRYER with (2) 50 gallon tanks Arrow Pneumatics Inc. model 240, serial no. A2168. Year 1993 (2) 50 gallon tanks, National Board 3173 Arrow, and 3179 Penway 32 inch W X 62 inch L X 92 inch H. Carbon steel construction MAWP 150 psi @ 450 degf. MDMT -20 […]
Stock no. E-4256 240 gallon 150 psi DESICCANT DRYER PRESSURE TANK Twin 120 gallon tanks mounted on a stand made by Silvan Industries/PneumaTech Rated for 150 psi @ 450 deg. F and -20 deg. F. .202″ hds, .227″ shell Each tank measures 28″ diameter x 48″ straight side with dished top & bottom 3″ top […]
Stock no. D-1098 J H DAY 304 STAINLESS STEEL ROTARY VACUUM DRYER SYSTEM 44 inch diameter x 16 ft long shell rated for Full Vacuum, jacket rated for 40 psi @ 275 deg. F National Board stamped. Typical print on file and U-1 report 30 Hp, 460 v, 3 ph Includes Graham 15 Hp Liquid […]
Stock no. D-1094 70 cu. ft. PFAUDLER GLASS LINED DOUBLE CONE DRYER Serial no. R581-3117, year 1982, NB no. 41830 Rated for Full Vacuum/30 psi @ 650 deg. F Jacket rated for 50 psi @ 350, 45 psi with vacuum 70 cu. ft. working capacity, 5015 glass. Approx. 180″ wide x 5′ x 130″ tall o/a […]
Stock no. B-3808 2 hp SANITARY STAINLESS STEEL TRI-BLENDER MIXER Model no. 2116MD B40, s/n 03014 Manufacturer TRI-CLOVER Division Of Alfa Laval Sanitary stainless steel 316 Tri-clamp 2 inch for powders, 1.5 inch for liquid in and out Top feed cone included (cone may not be exactly as pictured) Motor 2.5 hp 3600 rpm 3 […]
Stock no. B-3813 5 cu. ft. STAINLESS STEEL JACKETED PADDLE BLENDER Manufacturer (NO PLATE) ID= 24″ x 22″ x 20″ with curved bottom Sanitary stainless steel Inlets/outlets (2)2.5″ tri-clamp bottom out &(2)2″ side out. 3/4″ jkt. in/out Priced assembled with motor/drive setup, approximate 1 to 2 Hp. Former food use.
Stock no. D-0013 3 CU. FT. TWIN SHELL JACKETED BLENDER DRYER STAINLESS STEEL Manufacturer PATTERSON-KELLEY CO. Model SOLIDS PROCESSOR, #155883 O/A Dimensions 6′ 10” x 5′ 3” Stainless steel contacts Jacket rated for 30 PSI @ 250 F. Shell rated for Full Vacuum @ 250 F ( 2) 16 1/4” TOP INLETS, 6” bottom center […]
Stock Number: G-3080 Mfg. Siemans Model 100-1 Aniston water heater rated for 1350 watt 1/6 Hp metering pump 120v system with manual Rated for 100 gph (1) available
Stock Number: B-1001 1.5 HP ZIG-ZAG CONTINUOUS BLENDER 6000 lbs. per hour Mfg. PATTERSON-KELLEY CO. Size 14CLSS, no. 183187, stainless steel 1.5 Hp drive motor, 2 Hp intensifier bar, 230/460 v, 3ph Rated for 55 lbs. per cu. ft.density, to 6000 lbs per hr Continuous blender with liquid feed It is 102 inch overall in […]
Stock No. B-2877 5 cu. ft. MUNSON PADDLE BLENDER HD 1.5-3 MS Mfg. MUNSON, model HD1.5-3MS 5 cu. ft. working, 7 cu. ft. total, 400 Lbs capacity Carbon steel, 20 inch x 36 inch x 20 inch deep internal measurements 5 ft. long overall. Removable top with access door. On wheels 12 inch x 7 inch plug […]
Stock Number: B-3389 5 CU. FT. STAINLESS STEEL TURBULENT MIXER BLENDER Twin Shaft Turbulent Mixer Blender 13 x 48 x 15 inch internal dimensions No manufacturer id plate (2) 2 inch side outlets Motor with drive setup to be included (1) available
Stock Number: D-1080 20 CU. FT. STAINLESS STEEL DOUBLE CONE VACUUM DRYER-BLENDER Mfg. KOMLINE SANDERSON No. B-26. s/n 1-221, 1966, National Board no. 60 304 STAINLESS STEEL w/ carbon steel jacket FV/20 psi @ 300 F. shell, Jacket = 50 psi 5 hp, 1745 rpm, 208-220/440 v, 3ph, 60hz U-1 report on file (1) available
Stock Number: D-1063 20 CU. FT. PATTERSON KELLEY TWIN SHELL DRYER BLENDER Mfg. Patterson Kelley STAINLESS STEEL CONTACTS!, carbon steel jacket Jacket rated for 15 psi. Has internal vacuum bar. Priced with motor and stand setup (1) available
Stock Number: D-1077 Mfg. Penwalt Stokes Model 338D-5 Rated for FV @ 250 deg. F (4) 24 x 36 inch shelves with 3 inch spacing 40 inch wide x 36 inch deep x 66 inch tall overall (2)6 inch sight glasses, jacket in and out (1) available
Stock Number: D-1083 21 CU. FT. STAINLESS STEEL DOUBLE CONE VACUUM DRYER-BLENDER Mfg. PAUL O. ABBE, INC. Serial no. A40755, RotoCone, maximum bulk density of 150 lbs./cu. ft. 32 cu. ft. total. Working volume 65% fill level is 21 cu. ft. 1.5 Hp gear motor for drive, 5 rpm drum speed, 5 Hp 1165 rpm for […]
Stock Number: B-2381 40 CU. FT. STAINLESS STEEL TWIN SHELL BLENDER Mfg. Patterson Kelley Co. Liquids Solids Blender s/n 107324 Rated for 65 lbs/cu. ft. 5 Hp 1740 rpm drive motor, 15 Hp, 3500 rpm bar motor Priced setup on stand with motor and guards Will be sandblasted. has a lot of small dents (1) […]
Stock Number: B-0996 60 CU. FT. DOUBLE CONE BLENDER with LIQUIDS-SOLIDS BAR Carbon steel construction 80 inch diameter x 6 ft.. 18 inch top manway, 10 inch outlet 5 and 3/4 Hp drive motors, 25 Hp bar 230/460 v, 3ph, 60hz Liquids-solids bar and vacuum (1) available
Stock Number: D-1048 Mfg. Pfaudler Model 72-45-CD-SB 107 cu. ft. total volume, 70 cu. ft. working Does have patches in glass Jacketed (1) available
Stock Number: B-1076 120 CU. FT. CARBON STEEL RIBBON BLENDER 4.5 ft. x 8 ft. x 61 inch deep Carbon steel double ribbon 25 Hp, 230/460 volt, 3ph, 60hz 8 inch bottom end outlet De-lumpers pictured on top are not included (1) available
Stock Number: D-1040 100 CU. FT. DOUBLE CONE VACUUM DRYER-BLENDER FV JACKETED Mfg. PATTERSON INDUSTRIES Serial no. Y1495, National Board no. 693 Full vacuum/15 psi internal 15 psi JACKET @ 250 deg. F Carbon steel 6 ft. 6 in. diameter w/(2)3 ft. cones (1) available
Stock Number: B-0612 150 CU. FT. TWIN SHELL V BLENDER PATERSON KELLEY Mfg. PATTERSON-KELLEY CO. Carbon steel, rated for 50 LBS/CU. FT 5 ft. x 3 ft. x 8 ft. 12 in. outlet,(2)18 in. inlets DRY BLENDER 10 HP/1745 RPM (1) available
Stock Number: D-1084 265 LBS. PER HR. NIRO STAINLESS STEEL SPRAY DRYER Mfg. NIRO INC. Serial no. 6938-A1, type WT 28-125 90 in. diameter. Stainless steel Atomizer type FU 11B AA02, s/n 919, Niro 265 lbs. evaporating rate, 800 acfm Last used for turning liquid flavorings to powder at the above rate (1) available
Stock Number: B-1518 (2) 300 CU. FT. DOUBLE CONE BLENDER GEMCO CARBON STEEL mfg. GEMCO/ General Machine Co. 10 ft. 6 in. x 30 in. w/50 in. and 54 in. cones 14 in. and 18 in. outlet and inlet 25 hp/1765 rpm Carbon steel Includes stand and drive (2) available
Stock Number: D-1058 333 lbs. per hour ANHYDRO STAINLESS STEEL SPRAY DRYER Mfg. Anhydro Inc. Series 6 Model 3, no. 78-952-OA 304 stainless steel, gas fired with electric duct heaters 122 inch diameter x 166 inch and 7 ft, cone 480 v, 3ph, 5 KW. 333 lbs/hr powder production 450 lbs/hr feed, 117 lbs/hr water […]
Stock Number: D-1057 427 lbs. per hour ANHYDRO STAINLESS STEEL SPRAY DRYER Mfg. ANHYDRO, INC. Series 6 Model 4, O/N 82-1584, 1983 10 ft. 3 in. x 18 ft. w/7 ft. cone, plus Dust Collector 316 stainless steel feed, balance 304 stainless steel 577 lbs/hr water feed. 150 lbs/hr evaporation 427 lbs.hr powder Originally gas […]
Stock Number: B-1078 100 GALLON JACKETED STAINLESS STEEL SIGMA BLADE MIXER Mfg. Teledyne Readco 38 in. x 38 in. x 36 in. bowl 8 in. x 14 in. bottom center outlet with hyd. closure 30 Hp, 1770 rpm, 3 ph 150 gallon total, 100 gallon working capacity Jacketed! (1) available
Stock Number: B-0608 100 GALLON WERNER PFLEIDERER STAINLESS STEEL DOUBLE ARM MIXER Mfg. Werner Pfleiderer Type UK14V1H, machine no. 138304 Bramley Bekin type blades, stainless steel contacts Carbon steel jacket Hydraulic tilt dump 150/75 Hp 2 speed motor (1) available
Stock Number: B-0279 150 GALLON JACKETED SIGMA BLADE MIXER BAKER PERKINS VACUUM Mfg. Baker Perkins Model 16RIM2, no. 41767, NB 1981 Carbon steel. Jacket rated for 125 psi @ 450 F Internal rated for vacuum. Can take up to 150 HP 45 in. x 33 in. x 4 ft. deep bowl (2) 4.5 in. bottom […]
